System diagram: .
Two, System Introduction:

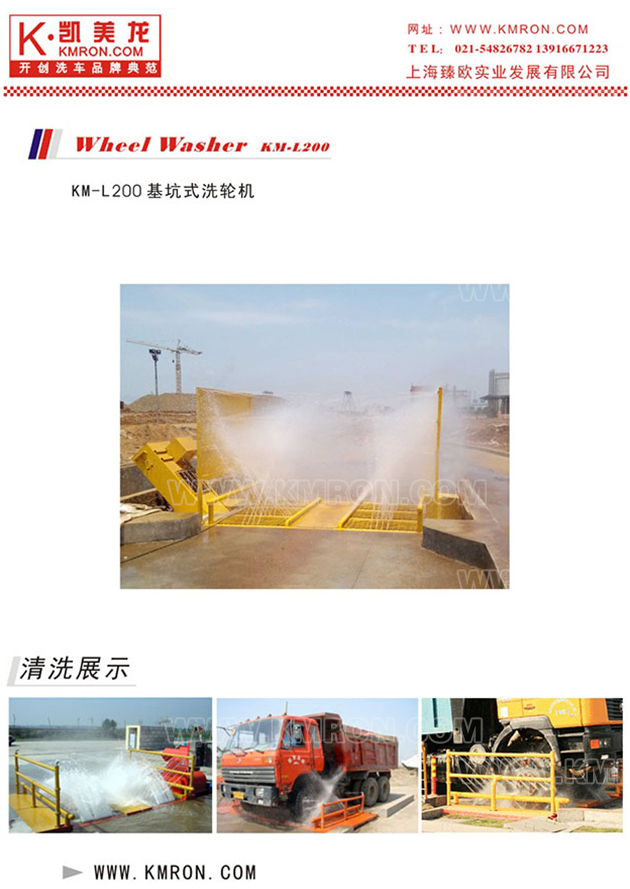

KMRON KM-L200Series Pit typeWheel Washing is designed specifically for washing various types of Engineering vehicles, completely solving the problem of road pollution caused by Engineering vehicles. The Model Equipment Fast Washing Speed and Installation are simple and applicable to various landfill sites, construction sites, concrete plants, mines, industrial manufacturing, and other places. On average, 60-80 vehicles can be washed per per hour, recycling water and saving a large amount of water resources. This Series Wheel Washing machine is suitable for relatively fixed locations and is widely used in landfill sites and various construction sites.
three,System Parameters:
Product and Model |
Model |
KM-L200 DRIVE THRU TYPE |
product |
KM-L200Wheel Washer |
Product System Parameters |
serial number |
project |
System Parameters |
1 |
Equipment size |
wide2200×long5340×high2000mm |
2 |
Applicable vehicles |
Large vehicles within 100T, Vehicle Body below 2800mm |
3 |
pumping station |
11KW×2P |
1M³/min |
35m |
4 |
Scraper motor |
0.75Kw×4P×1/120 |
5 |
Start method |
Limit switch |
6 |
power supply |
380V×3ø×50Hz |
7 |
Equipment Weight |
3500Kg |
8 |
Total power |
22.75Kw |
9 |
water consumption |
10.800L |
10 |
Washing pressure |
2.5-3Kg/cm³ |
4. Product Features:
KMRON KM-L200Pit-typeWheel WasherIt is an upgraded version of KM-L100, which not only has the advantages of KM-L100, but also has the following features:
1. Fully Automated Control System, Simple Operation:
The KMRON KM-L200 fully Automated Wheel Wash uses the fully Automated Control System. When the vehicle enters the Car Wash tank back, the processes of washing wheels, discharging sediment, etc. achieve full Automated Control. Therefore, no additional personnel need to be arranged at the wheel washing site.
2. The washing process is fast and simple, and the Car Wash effect is strong and clean
When engineering vehicles and other vehicles pass through the wheel washer, the fully automated washing machine achieves a fast, easy, and clean wheel washing effect through the sensor operation method. Furthermore, in order to achieve a strong force washing wheel effect, through the installation of pipes at both ends and the lower part of the side, three-dimensional washing wheel water is sprayed. Suitable for multiple vehicles passing through while considering fast washing hours and economic efficiency on site.
3. Low and affordable maintenance fees
KM-L200Wheel Washing minimizes the use of high priced consumable parts and the need for periodic replacement of parts in minutes, will to replace parts, and faults to the maximum extent possible. This system is highly automated and cost-effective, resulting in minimal costsEngineering Vehicle Washing MachineWheel Washer.
|
